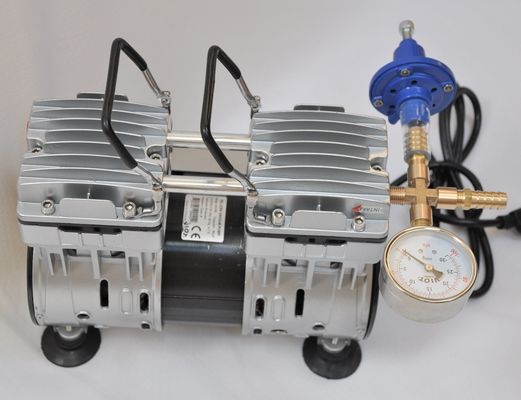

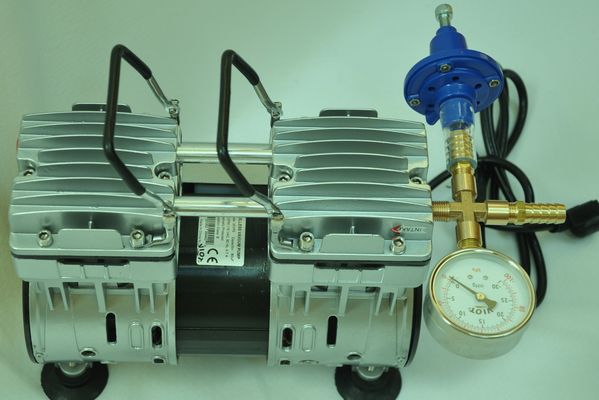

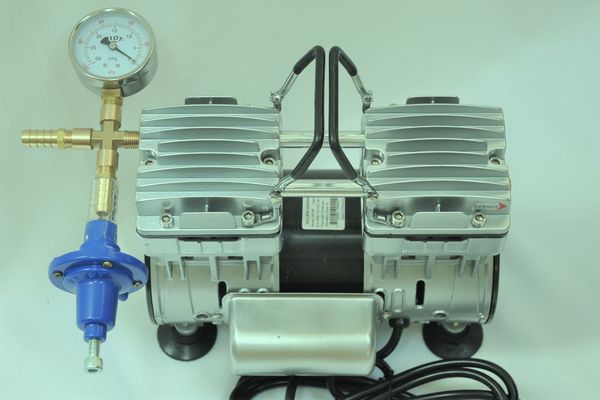

Controlled OIL-LESS VACUUM PUMP: Twin Piston 3/4 HP 5.5 CFM Good for Milker Machine Pulsator Hookup, Medical/Dental offices, Laboratory and Workshop Applications Like vacuum bagging/packing etc. Come with a vacuum gauge and regulator kit for vacuum lavel control, great addition for milking machine hookup. $ave the oil, no oil-mist problem,

FEATURES:

• OIL-free twin piston pump model WVP5;
• Designed and manufactured with the highest quality in materials and workmanship;
• Quiet run at wide temperature ranges, from subzero to 110 degree F, OK to start in cold.
• Free Flow Rate: 5.5 CFM;
• Push and pull/compressing and vacuum capable.
• Max Vacuum: 25 inch Hg;
• Thermal protected 3/4 HP motor;
  Power Supply:120 VAC, 60 Hz; 5 feet cord with UL plug;
  Insulation Class B;
  Capacitor: 80 uF, cased in/protected;

• Come with Control hardware kit for system pressure control and regulation: vacuum gauge and regulator with hardware.
• Come with 4 rubber suction feet to reduce/absorb vibration and noise;
• Physical Dimensions:
  Size: 11 X 6 X 9 inch;
  Shipping Weight: 28 lb.
• Intake Port: 1/4 female NPT, come with adapter to 1/2 Barb.
• One year warranty;
• Optional additions: mini dust filter on the intake port;
• Optional addition: mini muffler for quieter operation;

Packing List:

• Pump, model WVP5, one unit
• Intake Port Barb adapter: 1/4 female NPT or adapter to 3/8 Barb, one unit
• Intake Port adapter: 1/4 MNPT X 1/4 MNPT, one unit
• Intake air filter: one unit
• Exhaust muffler, one unit
• Exhaust muffler, one unit
• Regulation Hardware Kit: 1 unit, come assembled with these parts:

  1. Vacuum Gauge, 1 unit
  2. Vacuum regulator, 1 unit
  3. Brass Cross adapter, 1/4 MNPT X (3) 1/4 FNPT, 1 unit
  4. Brass adaptera, 1/4 MNPT X 1/2 Barb, 2 units
  5. Short 1/2 ID PVC hose, 2 inch, 1 unit
• User Manual: 1 copy
