| Model: | DTrap |

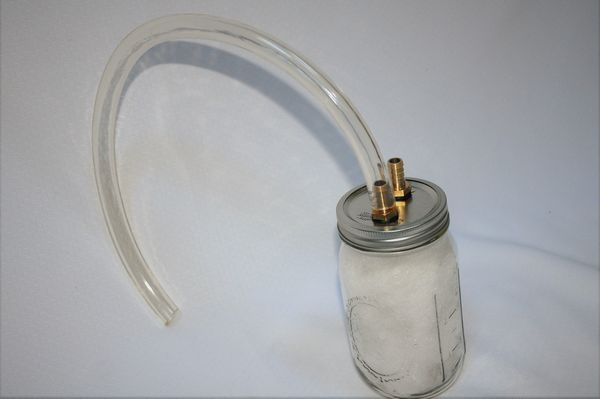

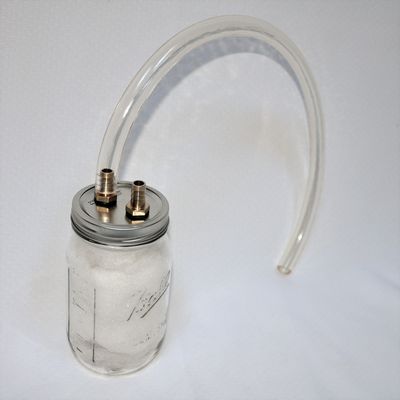

| Item Title: | Dust debris trap/collector for vacuum line before vacuum pump,protect pump, filled with Polyester material 1/2 ID and 1/2 barb |
| Price: | $147.95 |
| S&H: | $8.95, Continental USA, S&H varies to other areas and countries. |
|
Checkout: Credit Card or PayPal Account: |
|

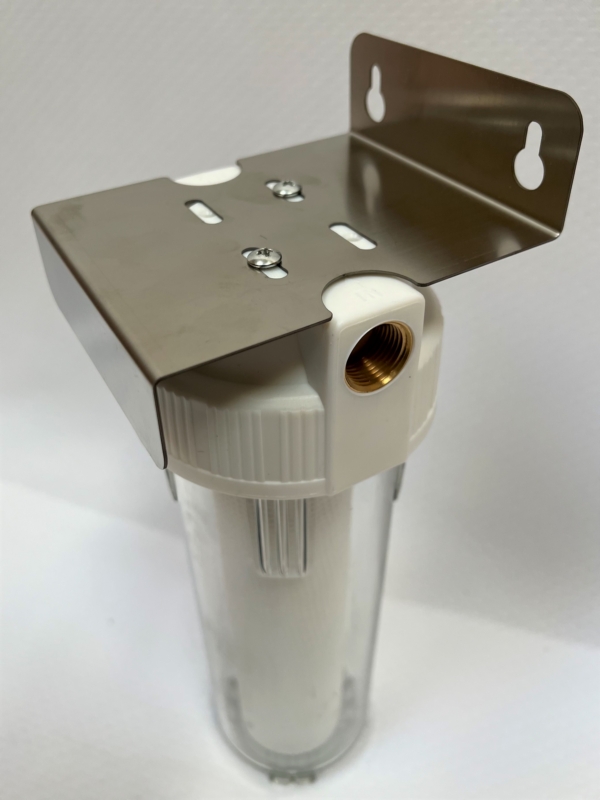

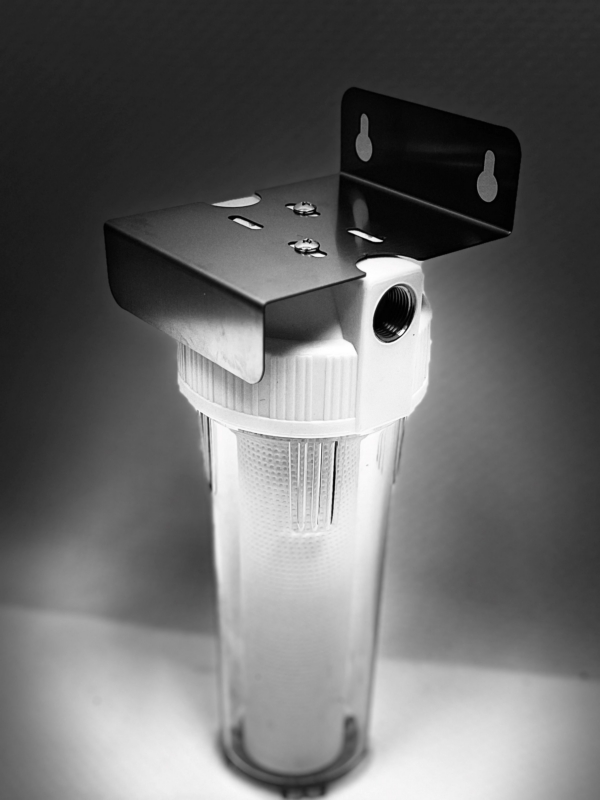

VIOT: 5 microns T-Style Inlet Vacuum Filter, Liquid Trap Vacuum Pumps Protector
Tee-style vacuum pump inlet filter, also referred to as inline straight-through filter, connect to the vacuum inlet of a vacuum pump. They prevent small particles and contaminants from entering the pump unit, which improves efficiency and extends the life of the pump. The replaceable filter core sits between the inlet and outlet ports. Clear housing let the user know when to replace/clean the filter. This assembly can serve as a liquid collector too if the inlet contain moisture condensate or limited amount of liquid.
Technical Specifications:
- Outside Diameter: 4.5 in
- Overall Height: 12 in
- Filter Rating: 5 micron
- Filtration Efficiency: 99 %
- Maximum Air Flow: 50 cfm
- Inlet/Outlet Size: 1/2 in
- Inlet/Outlet Connection Type: Brass female NPSC
- Application: Vacuum Intake filtration
- Connection Style: Threaded
- Filter Element Material: Polyester
- Pressure Drop: 75 +/- 20 passcal
- Housing Material: Polypropylene/hard plastic
- Country of Origin: USA (subject to change)
PACKING LIST:
- Filter housing: 1 unit;
- Filter core: 1 unit;
- Mounting Bracket: 1 unit with 4 screws;
- House Wrench: 1 unit.
