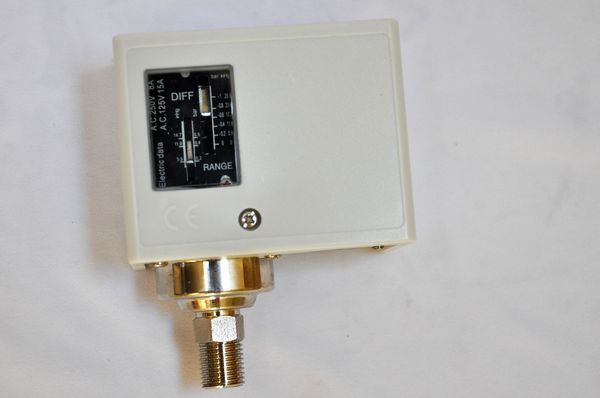

| Model: | VS2 | |
| Item Title: | Automation Deep Vacuum Control Switch Actuator full range/differential Pressure 1/4 NTP male Port, 115 or 220 VAC Circuit 15 Amp | |
| Price: | $79.99 | |
| S&H: | $7.95, Continental USA, S&H varies to other areas and countries. | |
| Checkout: Credit Card or PayPal Account: | Or Make An Offer | |
Vacuum System Pressure Control Switch Pump Regulator Attenuator:Full Range from upto 29 inch Hg, Adjustable Range and Span differential pressure
USEFUL FOR: vacuum pumps system control, for vacuum system automation.
Features:
- Direct control circuit up to 15 amp, or add a replay to any size you need

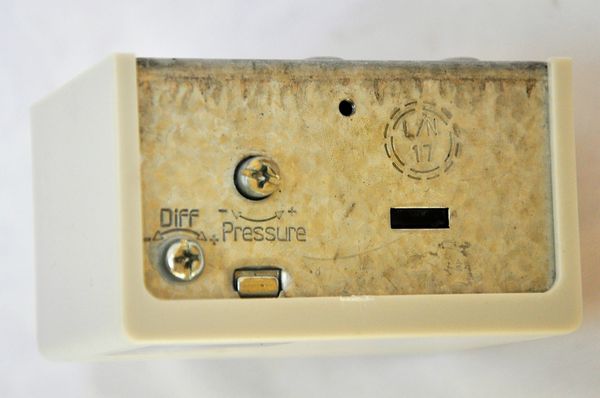

- Adjustable trip vacuum level up to 30 inch Hg, and set differential to kick back point

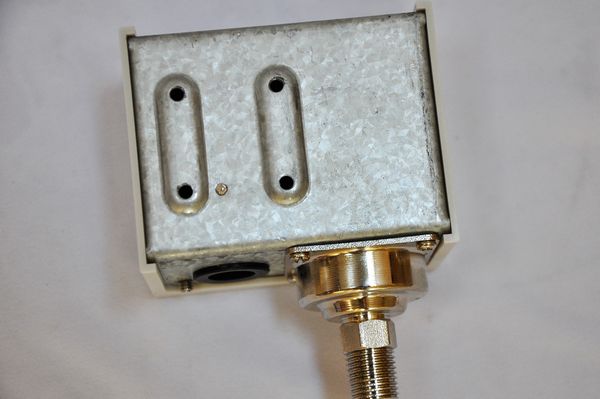

- 1/4 inch male NPT vacuum input
- Wire it normally open (NO) or normally closed(NC).
- Electric wiring harness/box
- Single through for circuits: 120, 220, 380 Volt
- Operating Temperature range: - 4 to 120 °F
- Pressure set point range -1 to -29 inch Hg;
- Dead band: adjustable to what you need
- pressure tolerance 5% full scale, sensitive
- Electric Connectors/contacts: in electric box included

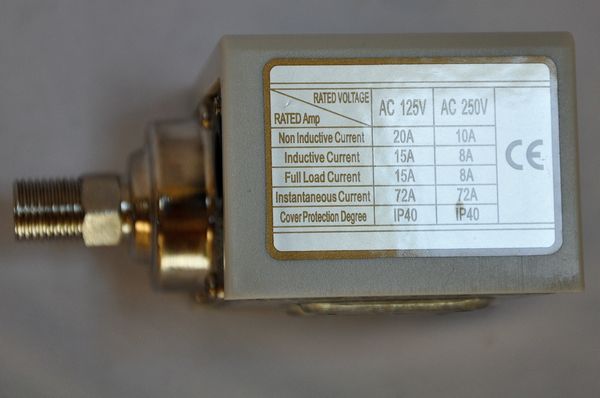

- Power in Circuit: 15 amp (120 VAC), or use relay for bigger pumps
- Line voltage: 120 VAC, 220VAC, 380 VAC or DC Circuit
- Life: 100,000,000 times
- Physical Size: 3 X 3 X 2 inch;
